Cnm Md Series Electric Hydraulic Tension Machine

1. CNM MD Series Electric Hydraulic Tension Machine

1.1 Specifications:

1. Model: CNM-MD Series Electric Hydraulic Tension Machine

2. Capacity: 10 tons, 18 tons, 20 tons, 24 tons and 27 tons, etc.


3.  Usage: For pre-stressing single strand or flat anchor system

4. Applications:   Coal  mine , bridge, high buldings, railway and subway,  water conservancy and hydropower engineering .



 2. Details for CNM MD Series Electric Hydraulic Tension Machine

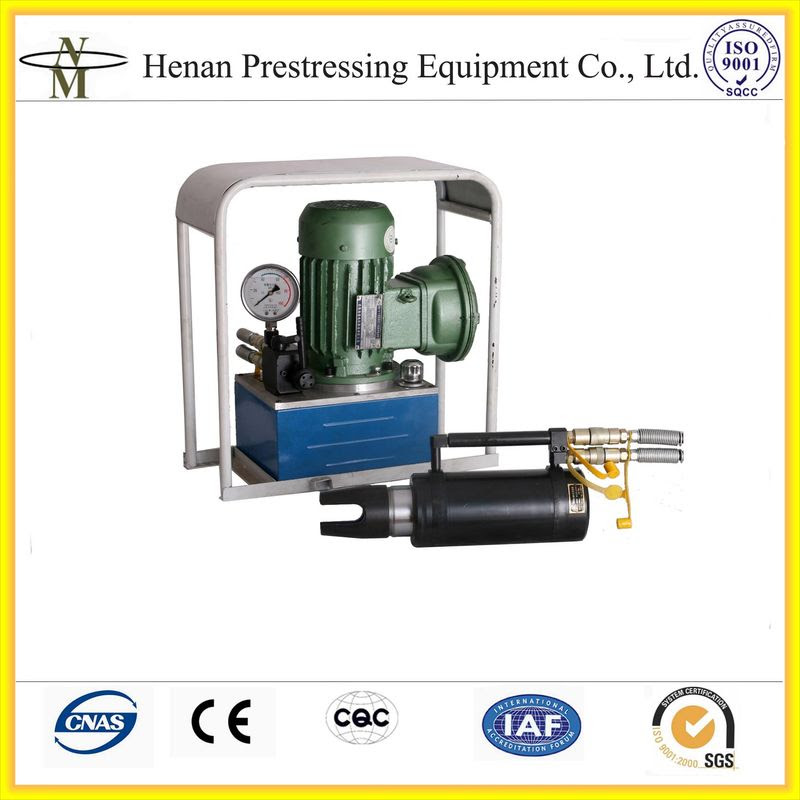

1. Electric hydraulic tension machine is combination of Electric hydraulic pump and tension jack.

2. Jack can complete these automaticly: seize theanchor, load tension, boost and lock anchors under the drive of hydraulic pump, it is necessary during unloading tension and loosing the cable anchor.

3. Especially used in theengineering of prestressing tensioning construction for mines, tunnels, bridges.

3. Features for CNM MD Series Electric Hydraulic Tension Machine

1. The operated valves have the functions of maintaining the hydraulic load and keeping the load step by step.

2. The force indicator shows the value of output force directly. The jack cylinder is made of premium alloy steel which can support high pressure and have huge tension. The design of anchor's grasping claws are reasonable, the surface is processed by Carbonitriding.

3.  It seizes the anchor firmly and smoothly and long service time. The set of equipment work smoothly, operate easily and maintain simply.





4. Our Company Intruduction:

We are a professional PT Manufacturer from China, we supply full ranges of materials and equipment for PT Construction as followings:

1). Materials: pc strand, anchor system(monostrand anchor, multistrands anchor, mining anchor), anchor couplers, ducts(metal ducts, HDPE plastic ducts), PC Strand, etc.

2). Equipment: Hydraulic Jack(mono jack, multi-strand tensioning jack), electric oil pump, YH30 embossing machie(onion jack), GYJ500 extrusion machine, ZG130 ducts making machine, grouting pump and mixer for post tensioning).

3). Bridge Equipment: Bridge Crane, Bridge Girder Launching Machine, Bridge Girder Transporting Vehicle, etc.


5. FAQ:

1) Q: Do you provide OEM Service or Customized-made Jack and Pump?
A :Yes, we do. Kindly please inform us your required Maximum Capacity(tons) And Stroke(tension journey) for Jack.

2) Q: How to guarantee we get Good Quality Hydraulic Jack And Pump?
A: We have built Testing Center with full ranges of Testing Equipment to test Anchorage, Wedges, PC Strand, Ducts, Hydraulic Jack and Pump. All goods must be tested here to make sure it is qualified before delivery.

3) Q: How is the delivery lead time:
A: Goods in stock: within 3 days, Goods out of stock(7 days), Goods need to be customized(10-15 days).

4) What is your Minimum Order?
A: MOQ: 1 SET.


6. CNM-MD Series Electric Hydraulic Tension Machine Technical Data:


Rated tensioning (k N)	180kN
Max Tension Stroke (mm)	150mm
Tension Speed (cm/min)	≥20.7cm/min
Confined area of Jack (cm²)	30.4cm²
Rated oil pressure ( M Pa )	63M Pa
Anchor rope diameter (mm)	15.24mm
Supply Voltage Motor Power	660/1140 V 0.75KW
Weight-tension jack (kg)	14kg
weight-electric hydraulic pump (kg)	55.5kg

We are PT Manufacturer from China, our full products range for post tensioning and pre-strssing construction:

1. Materials: pc strand, YJM anchor system(monostrand anchor, multistrands anchor), mining anchor system, ducts(metal ducts, HDPE plastic ducts), PC Strand.

2. Equipment: Hydraulic Jack(QYC mono jack, YDC multi-strand tensioning jack), electric oil pump, YH30 embossing machine(onion jack), GYJ500 extrusion machine, ZG130 ducts making machine, grouting pump and mixer for post tensioning).

3. Bridge Equipment: Bridge Crane, Bridge Girder Launching Machine, Bridge Girder Transporting Vehicle, etc.
